Products Details

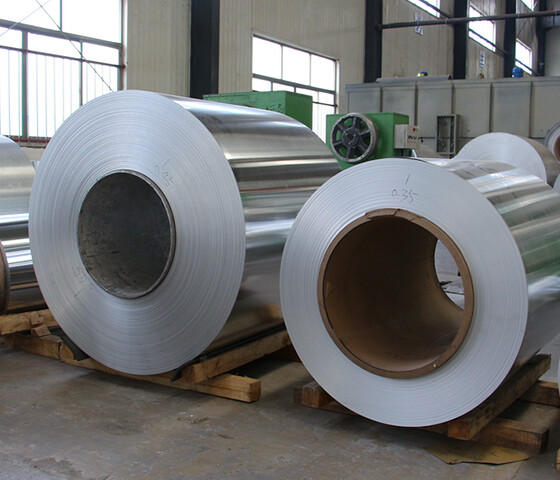

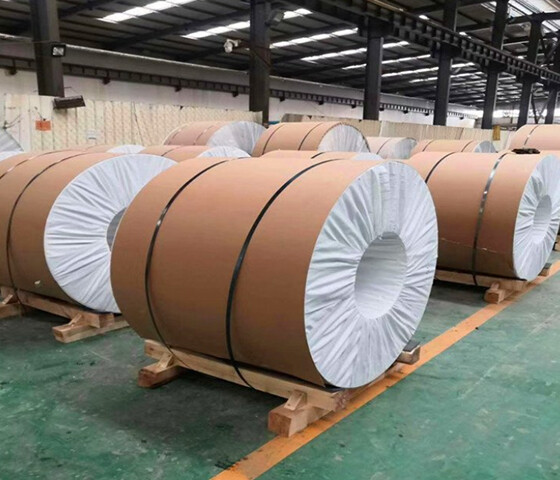

Aluminum coil is a metal product that is subjected to flying shearing after rolling and bending processing in a casting and rolling mill.
Aluminum coils are widely used in electronics, packaging, construction, machinery, etc. There are many aluminum coil manufacturers in my country, and the production technology has caught up with developed countries.
According to the different metal elements contained in aluminum coils, aluminum coils can be roughly divided into 9 major categories. , that is, it can be divided into 9 series.
The following is a step-by-step introduction:
Products Parameter
| Products Name | Aluminum coil |
Size
| Coil ID:75mm,150mm,200mm,300mm,400mm
|
Width:100-2600mm
|
Thickness:0.2-8.0mm
|
Certification
| ISO,SGS,BV |
| Surface Color | Nature, silver, bronze, champagne, black, golden, etc As customized |
Grade
| 1000 Series: 1050 1060 1070 1100 1200 1235 etc. 3000 Series: 3003 3004 3005 3104 3105 3A21 etc. 5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc. 6000 Series: 6061 6063 6082 6A02 etc. 7000 Series: 7050 7475 7075 etc. |
Temper
| H12,H14,H16,H18,H20,H22,H24,H26,H28,H32,H36,H38,HO,H111,H112,H114,H116,H118,H321. |
Packing
| Protective film +plastic film or EPE +kraft paper |
| Usage | aluminum profile for windows/ doors/ decoration/ construction/ curtain wall |
Standard
| ASTM，AISI，JIS，GB， DIN，EN |
| Material Details | 1000 series | The 1000 series aluminum plate is also called pure aluminum plate. Among all series, the 1000 series belongs to the series with the largest aluminum content. The purity can reach more than 99.00%. Since it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap. It is currently the most commonly used series in conventional industries.Most of the ones circulating in the market are 1050 and 1060 series. |
| 2000 series | The 2000 series aluminum plates representing 2A16 (LY16) 2A06 (LY6) are characterized by high hardness, of which the copper element content is the highest, about 3-5%. 2000 series aluminum plates are aviation aluminum materials and are not commonly used in conventional industries. |
| 3000 series | Mainly representing 3003 3003 3A21. It can also be called rust-proof aluminum plate. my country's 3000 series aluminum plate production technology is relatively excellent. 3000 series aluminum plates are mainly composed of manganese. The content is between 1.0-1.5.It is a series with better anti-rust function. It is commonly used in humid environments such as air conditioners, refrigerators, and car bottoms. The price is higher than the 1000 series, and it is a more commonly used alloy series. |
| 4000 series | The aluminum plate represented by the 4A01 4000 series belongs to the series with higher silicon content. Usually the silicon content is between 4.5-6.0%. Belongs to construction materials, mechanical parts, forging materials, and welding materials; has low melting point and good corrosion resistance. Product Description: It has the characteristics of heat resistance and wear resistance. |
| 5000 series | Represents 5052.5005.5083.5A05 series. The 5000 series aluminum plate belongs to the more commonly used alloy aluminum plate series. The main element is magnesium, and the magnesium content is between 3-5%. It can also be called aluminum-magnesium alloy. The main features are low density, high tensile strength and high elongation. The weight of aluminum-magnesium alloy is lower than other series under the same area. Therefore, it is often used in aviation, such as aircraft fuel tanks. It is also widely used in conventional industries. The processing technology is continuous casting and rolling, and it belongs to the hot-rolled aluminum plate series, so it can be used for deep oxidation processing. In my country, the 5000 series aluminum plate is one of the more mature aluminum plate series. |
| 6000 series | Representing 6061, it mainly contains two elements: magnesium and silicon, so it combines the advantages of the 4000 series and the 5000 series. 6061 is a cold-processed aluminum forged product, suitable for applications that require high corrosion resistance and oxidation resistance. Good workability, excellent interface characteristics, easy coating, and good processability. Can be used on low voltage weapons and aircraft joints.General features of 6061: excellent interface characteristics, easy coating, high strength, good workability, and strong corrosion resistance.Typical uses of 6061 aluminum: aircraft parts, camera parts, couplers, ship accessories and hardware, electronic accessories and connectors, decorative or various hardware, hinge heads, magnetic heads, brake pistons, hydraulic pistons, electrical accessories, valves and valve parts . |
| 7000 series | Representative 7075 mainly contains zinc. It also belongs to the aviation series. It is an aluminum-magnesium-zinc-copper alloy. It is a heat-treatable alloy. It is a super-hard aluminum alloy and has good wear resistance.7075 aluminum plates are stress-relieved and will not deform or warp after processing. All oversized and ultra-thick 7075 aluminum plates have been ultrasonically detected to ensure there are no blisters or impurities.7075 aluminum plate has high thermal conductivity, which can shorten molding time and improve work efficiency. The main feature is its high hardness. 7075 is a high-hardness, high-strength aluminum alloy that is often used in manufacturing aircraft structures and futures. It requires high-stress structural parts and mold manufacturing with high strength and strong corrosion resistance. |
| 8000 series | The more commonly used ones are 8011 which belongs to other series. |
