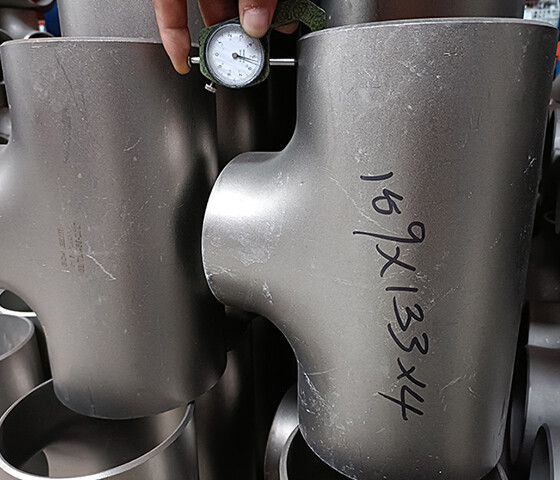

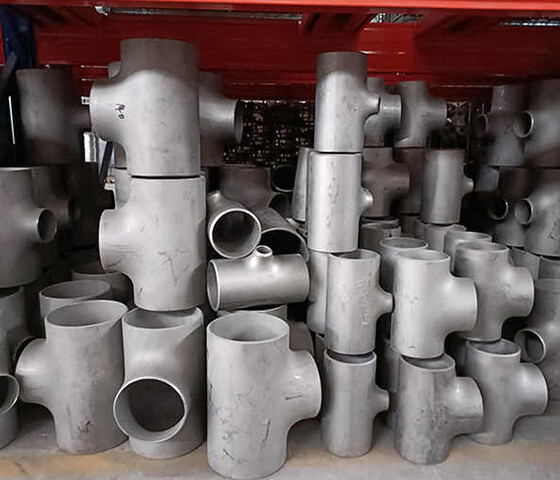

Stainless steel tee

Stainless steel tee for pipe fittings, pipe connectors.Used in main pipeline to branch pipe.Stainless steel tee is divided into equal diameter and reducing diameter, equal diameter tee's pipe end is the same size;The main pipe size of the reducing tee is the same, while the branch pipe size is smaller than the main pipe size.

PRICE: Please email us for accurate quotation.

Mode of transport: Ship plane

Product specifications can be customized according to customer requirements

Message

PRODUCT DETELS

Product Name	Stainless steel tee
Grade	410，430，201，304，304L，321，316，316L，317L，347H，309S，310S，904L，S32205，2507，254SMOS，32760，253MA，N08926，etc.
Grade	1.4301，1.4307，1.4541，1.4401，1.4404，1.4571，1.4438，1.4539，1.4547，1.4529，1.4562，1.4410，1.4878，1.4845，1.4828，1.4876，2.4858，2.4819
Wall Thickness：	SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Size	1/2“ -48”（Dn15-Dn1200）
Surface：	nature color, varnished, black painting, anti-rust oil etc.
Type：	Equal/Straight tee,reduced tee,Y tee,lateral tee,Barred tee,split tee,tee cross
MODEL：	1.Tee(Straight and Reducing) 2.180 DEG Return
Connection	bevel end/BE/buttweld
Standard	GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.

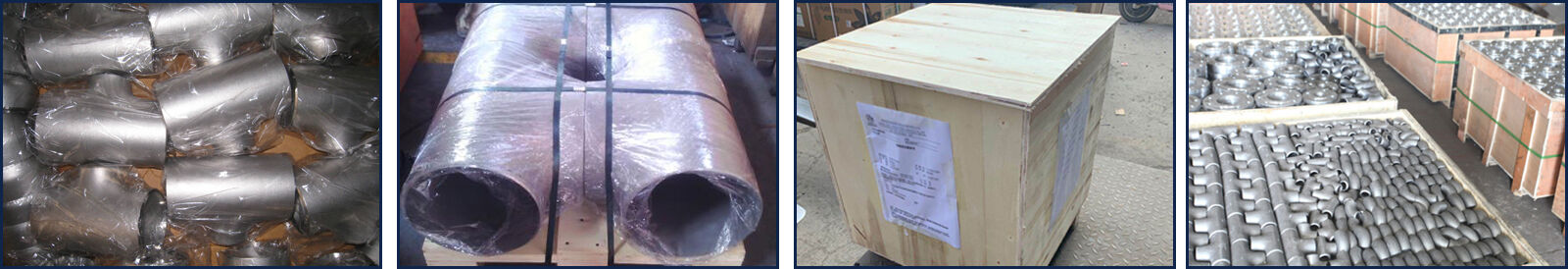

Packaging	1. cases packed in wooden cases2. paper packaging3. plastic packing4. foam packagingPackaging according to customer requirements or products
Payment Terms	T/T L/C and Western Union etc
Packaging & Delivery	in bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

SURFACE	CHARACTERISTIC	SUMMARY OF MANUFACTURING METHOD	APPLICATION
NO.1	Silvery white	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.1	lackluster	Hot rolled to specified thickness	Do not need to have a glossy surface use
NO.2D	Silvery white	After cold rolling, heat treatment and pickling are carried out	General material, deep material
NO.2B	Gloss is stronger than No.2D	After No.2D treatment, the final light cold rolling is carried out through the polishing roller	The general material
BA	As bright as a sixpence	No standard, but usually a bright annealed surface with high reflectivity.	Building materials, kitchen utensils
NO.3	Rough lapping	Grind with 100~200# (unit) strop tape	Building materials, kitchen utensils
NO.4	Intermediate grinding	Polished surface obtained by grinding with 150~180# strop abrasive tape	Building materials, kitchen utensils
NO.240	Fine lapping	Grinding with 240# strop abrasive tape	kitchenware
NO.320	Very fine grinding	Grinding was carried out with 320# strop abrasive tape	kitchenware
NO.400	The luster is close to BA	Use 400# polishing wheel to grind	General timber, building timber, kitchen appliances
HL	Hairline grinding	Suitable particle material for hair stripe grinding (150~240#) with many grains	Building, construction material
NO.7	It's close to mirror grinding	Use a 600# rotary polishing wheel to grind	For art or decoration
NO.8	Mirror ultrafinish	The mirror is ground with a polishing wheel	Reflector, for decoration

Carbon (C) : 1. Improve the deformation resistance and tensile strength of the blade;2. Enhance hardness and improve wear resistance.

Cr (Cr) : 1. Enhance hardness, tensile strength and toughness;2. Anti-wear and corrosion.

Cobalt (CO) : 1. Increase the hardness and strength so that it can withstand high temperature quenching;2. Used to enhance certain individual properties of other elements in more complex alloys.

Copper (Cu) : 1. Enhance corrosion resistance;2. Enhance wear resistance.

Manganese (Mn) : 1. Increase the quenchability, wear resistance and tensile strength;2. Removal of oxygen from molten metal by separate oxidation and separate vaporization;3. When added in large quantities, the hardness is enhanced, but the brittleness is improved.

Molybdenum (Mo) : 1. Enhanced strength, hardness, quenchability and toughness;2. Improve machinability and corrosion resistance.

Nickel (Ni) : 1. Enhance strength, hardness and corrosion resistance.

Phosphorus (P) : Enhanced strength, machinability and hardness.

2. When the concentration is too large, it is easy to crack

Silicon (Si) : 1. enhanced ductility;2. Increase the tensile strength;3. Removal of oxygen from molten metal by separate oxidation and separate vaporization.

Sulphur (S) : small amount used to improve machinability.

Tungsten (W) : Increases strength, hardness and toughness.

Vanadium (V) : Increases strength, hardness and seismic resistance.
